蛋白磷酸化研究的預制膠

SuperSep Phos-tag™

　　SuperSep Phos-tag™ 是研究蛋白磷酸化的方法，無需特異性磷酸化抗體或者同位素標記。

◆SuperSep Phos-tag™

　　Phos-tag™ 是一種預制膠，預先加入了50 μmol/L的Phostag™ Acrylamide，打開包裝即可直接使用。預制膠中含有鋅作為金屬離子，在中心凝膠緩沖液中保存穩定性很好，得到的帶條結果也很整齊。

　　磷酸化蛋白和非磷酸化蛋白作為不同條帶分離。

　　分離后，膠可用于考馬斯亮藍染色，免疫印跡和質譜實驗。

已公開的驗證蛋白列表，請點擊

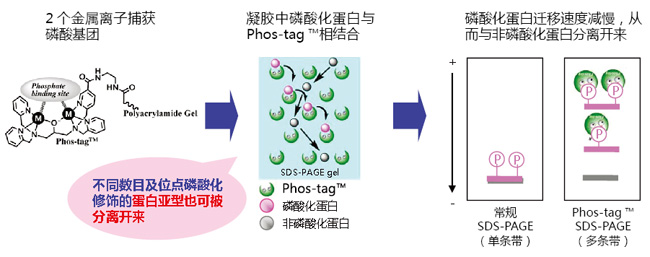

◆Phos-tag™ SDS-PAGE 的原理

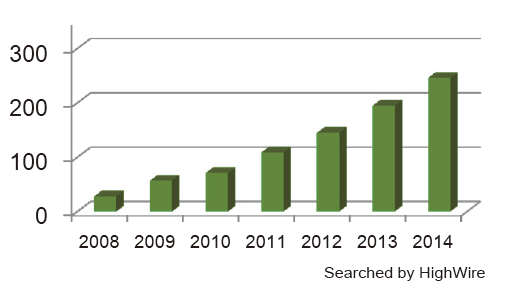

◆在HighWire Search 上搜索到的論文數

◆運用

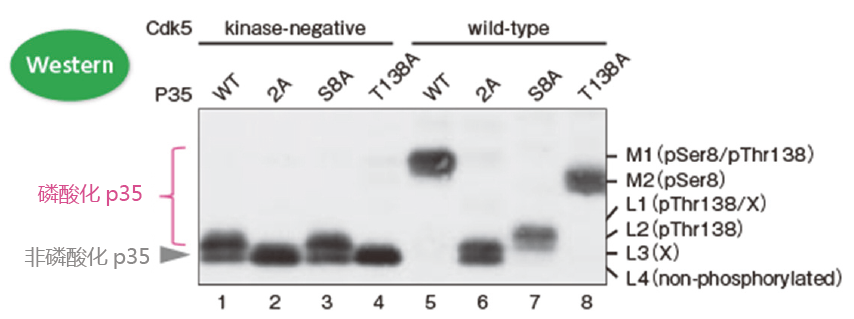

利用p35的丙氨酸突變體確定Cdk5 激活p35的磷酸化位點

　　p35常見的磷酸化位點是Ser8和Thr138。但是Ser8和Thr138位點往往會發生丙氨酸突變，產生3種突變體（Ser8突變體：S8A，Thr138突變體：T138A，Ser8和Thr138雙突變體：2A）。這3種突變體、野生型p35、Cdk5和沒有激酶活性的Cdk5都來源于COS-7細胞。這些細胞裂解液用Phos-tag™ SDS-PAGE和Western blotting 進行檢測（檢測抗體：p35抗體）。

100 μM Phos-tag ™ 丙烯酰胺, 7.5% 聚丙烯酰胺凝膠

可明確磷酸化位點和條帶遷移率的關系！

– 泳道1（條帶L2和L4）和泳道5（條帶M1）：p35在Cdk5的作用下發生了磷酸化；

– 泳道1（條帶L2和L4）和泳道3（條帶L2和L4）：在無激酶活性Cdk5的作用下，大約有一半p35蛋白在Thr138位點

發生磷酸化，同樣在138位發生突變的p35蛋白亦是如此。

– 泳道5 （條帶M1）和泳道6（條帶L3和L4）：Ser8和Thr138是主要的磷酸化位點；

– 泳道5（條帶M1）、泳道7（條帶L1和L2）和泳道8（條帶M2）：條帶M1是Ser8和Thr138都發生磷酸化的條帶；

條帶M2是只有Ser8磷酸化的條帶；條帶L1和L2是只有Thr138磷酸化的條帶。

※ 條帶L1和L3中的X 是不確定哪個位點發生磷酸化的條帶；

※ 條帶L4是非磷酸化的p35。

【參考文獻】

▪ Quantitative Measurement of in Vivo Phosphorylation States of Cdk5 Activator p35 by Phos-tag ™ SDS-PAGE. T. Hosokawa, T. Saito, A. Asada, K. Fukunaga, and S. Hisanaga,Mol. Cell. Proteomics, Jun 2010;9: 1133 – 1143.

【結果提供】

理化學研究所 腦科學綜合研究中心 回路功能研究核心 記憶功能研究團隊 細川智永（Dr. T. Hosokawa）

首都大學東京 理工學研究科 生命科學專業 神經分子功能研究室 久永真市（Dr. S. Hisanaga）

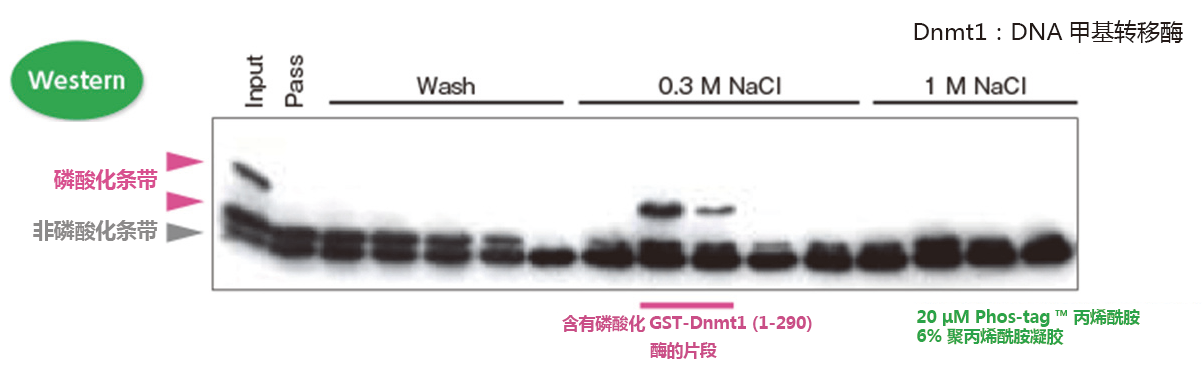

檢測含有Dnmt1磷酸化激酶的片段

我們可以確定在片段中含有目的激酶！

① 采用親和色譜法從鼠腦提取液中純化GST-Dnmt1（1-290）結合蛋白

② 使用0.3 M 和1 M NaCl 的DNA 纖維素柱洗脫得到目的蛋白

③ GST-Dnmt1（1-290）作為體外激酶實驗的反應底物

④ Phos-tag ™ SDS-PAGE 用于Western blotting，確定遷移條帶中每個片段的激酶活性

【參考文獻】

▪ The DNA-binding activity of mouse DNA methyltransferase 1 is regulated by phosphorylation with casein kinase 1delta/epsilon. Y. Sugiyama, N. Hatano, N. Sueyoshi, I. Suetake, S. Tajima, E. Kinoshita, E. Kinoshita-Kikuta, T. Koike, and I. Kameshita, Biochem. J.,

【結果提供】

高知大學 綜合研究中心 生命、功能物質部門 實驗實習機器設施 杉山康憲（Dr. Y. Sugiyama）

香川大學 農學部 應用生物科學科 動物功能生化學研究室 龜下勇（Dr. I. Kameshita）

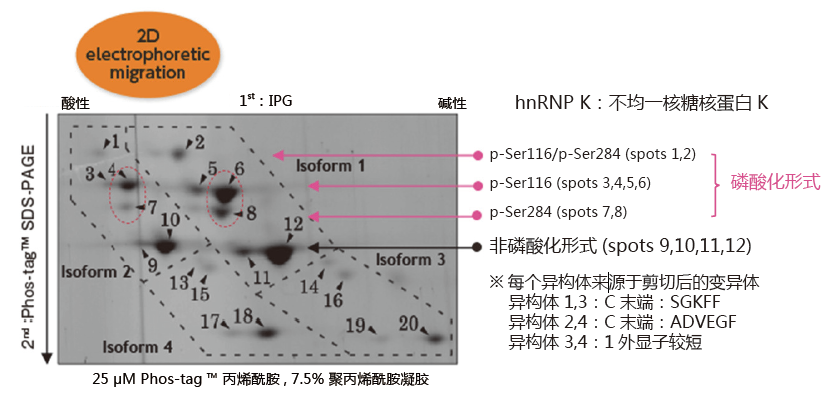

二維電泳中的應用：分析hnRNP K磷酸化異構體

　　小鼠巨噬細胞J774.1 經LPS 刺激后，裂解細胞，經過免疫沉淀法分離得到hnRNP K。在二維電泳中，一維是IPG 膠，二維是Phos-tag ™ SDS-PAGE，可分離hnRNP K 的異構體。利用質譜儀，可以確認不同的點代表不同的亞型或修飾蛋白。

同一個等電點的位置上，不同位點發生磷酸化都可以被區分開來

（例: spots 6 vs. 8 and spots 4 vs. 7）

【參考文獻】

▪ Characterization of multiple alternative forms of heterogeneous nuclear ribonucleoprotein K by phosphate-affinity electrophoresis. Y. Kimura, K. Nagata, N Suzuki, R. Yokoyama, Y. Yamanaka, H. Kitamura, H. Hirano, and O. Ohara, Proteomics, Nov 2010; 10(21): 3884-95.

【結果提供】

橫濱市立大學 生命納米系統科學研究科 生物體超分子系統科學專業 木村彌生（Dr. Y. Kimura）、平野久（Dr. H. Hirano）

理化學研究所RCAI 小原收

◆備注

樣品制備：

Phos-tag SDS-PAGE對于蛋白樣品中的雜質非常敏感，尤其是螯合劑，釩酸，無機鹽，表面活性劑這類物質。

強烈建議在Phos-tag SDS-PAGE之前通過TCA沉淀或滲析法降低雜質含量。

轉膜前處理：

另一個必須的步驟是在轉膜前，用EDTA去除凝膠中的金屬離子（Mn2+或者Zn2+）；

該步驟可提高蛋白的轉膜效率。

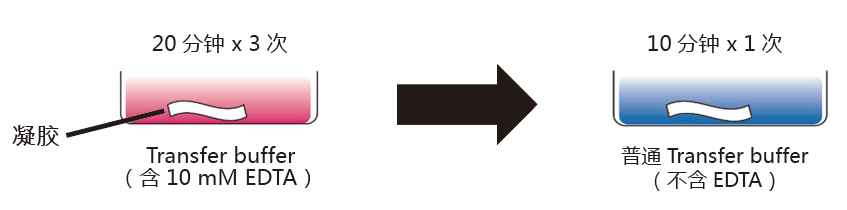

●　分別準備10 mmol/L 含EDTA和不含EDTA 兩種1x transfer buffer。

●　將凝膠浸泡在含10 mmol/L EDTA的1x transfer buffer，至少20分鐘，溫和搖晃。更換新緩沖液，重復3次。

●　將凝膠浸泡在不含10 mmol/L EDTA的1x transfer buffer，10分鐘，溫和搖晃。

●　轉膜操作*。

* 建議用濕法轉膜，以提高轉膜效率。

◆質量控制

　　每一批SuperSep Phos-tag™，出廠前均根據其產品規格進行測試，以保證可分離磷酸化和非磷酸化蛋白，以及他們的分離成都在正常參數內。

◆保存溫度

2-10℃

◆產品信息

用于Bio-Rad伯樂電泳儀

貨號	品名	電泳儀	規格
198-17981	SuperSep™ Phos-tag™ (50μmol/L), 7.5%, 17well, 83×100×3.9mm	Mini-PROTEAN?  Tetra Cell (Bio-Rad Laboratories, Inc.)	5 塊
195-17991	SuperSep™ Phos-tag™ (50μmol/L), 12.5%, 17well, 83×100×3.9mm		5 塊

用于Life Technologies電泳儀

貨號	品名	電泳儀	規格
192-18001	SuperSep™ Phos-tag™ (50μmol/L), 7.5%, 17well, 100×100×6.6mm	XCell SureLock?  Mini-Cell (Life Technologies, Inc.)	5 塊
199-18011	SuperSep™ Phos-tag™ (50μmol/L), 12.5%, 17well, 100×100×6.6mm		5 塊

用于Wako EasySeperator電泳儀

產品編號	產品	凝膠濃度	孔數	包裝
192-17401	SuperSep™ Phos-tag™ (50 μmol/L) Phos-tag™ 預制膠50 μmol/L	6.0%	13孔	5塊
199-17391		6.0%	17孔	5塊
195-17371		7.5%	13孔	5塊
192-17381		7.5%	17孔	5塊
193-16711		10.0%	13孔	5塊
190-16721		10.0%	17孔	5塊
195-16391		12.5%	13孔	5塊
193-16571		12.5%	17孔	5塊
193-16691		15.0%	13孔	5塊
196-16701		15.0%	17孔	5塊
197-16851		17.5%	13孔	5塊
194-16861		17.5%	17孔	5塊

◆相關產品

產品編號	產品名稱	規格
058-07681	EasySeparator Phos-tag預制凝膠的配套電泳槽	1 set

Phos-tag™ 系列

磷酸化蛋白新方法！

　　Phos-tag™是一種能與磷酸離子特異性結合的功能性分子。它可用于磷酸化蛋白的分離（Phos-tag™ Acrylamide）、Western Blot檢測（Phos-tag™ Biotin）、蛋白純化 （Phos-tag™Agarose）及質譜分析MALDI-TOF/MS （Phos-tag™ Mass Analytical Kit）。

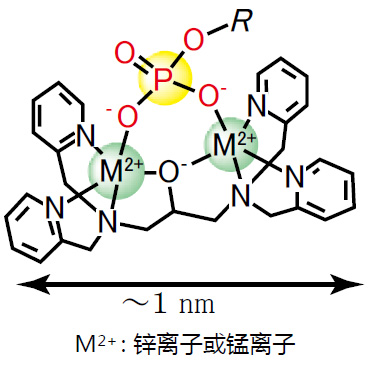

◆Phos-tag™ 的基本結構：

特點：

與-2價磷酸根離子的親和性和選擇性高于其它陰離子

在pH 5-8的生理環境下生成穩定的復合物

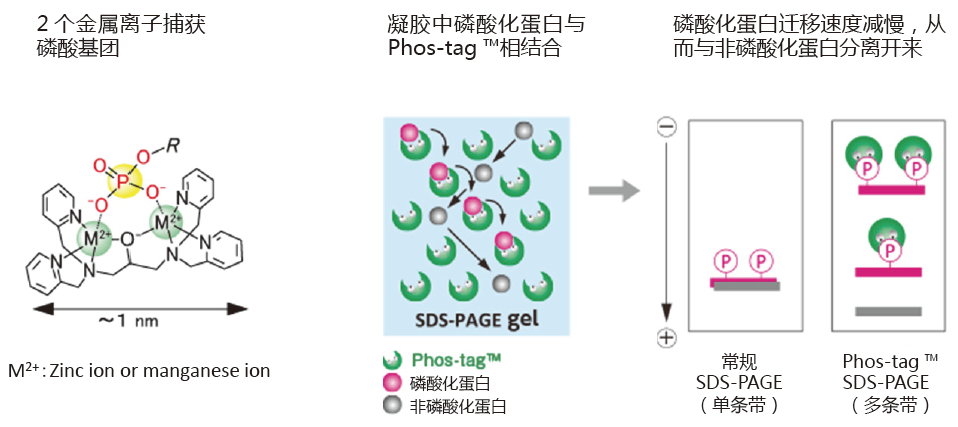

◆原理：

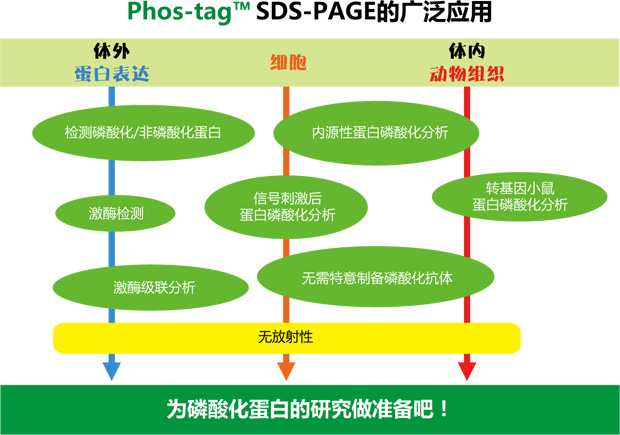

◆相關應用：

◆相關產品：

產品名稱	用　　途
Phos-tag™ Acrylamide	分離: SDS – PAGE 分離不同磷酸化水平的蛋白
SuperSep Phos-tag™	分離: 預制膠中含有50μM Phos-tag™ Acrylamide
Phos-tag™ Biotin	檢測: 代替 Western Blot 檢測中的磷酸化抗體
Phos-tag™ Agarose	純化: 通用柱層析，純化磷酸化蛋白
Phos-tag™ Mass 　Analytical Kit	分析: 用于質譜 MALDI-TOF/MS 分析，提高磷酸化分子的檢測靈敏度

phos-tag™由日本廣島大學研究生院醫齒藥學綜合研究科醫藥分子功能科學研究室開發。

更多產品信息，請點擊：http://phos-tag.jp

Phos-tag 第5版說明書

Phos-tag系列 ver 5

Q1.	我們可以采用哪種凝膠染色法？
A1.	所有的染色法都可使用，最常用的例如考馬斯亮藍染色法，負染，銀染和熒光染色等。
Q2.	用考馬斯亮藍染法染色，著色不明顯。
A2.	在微波爐內進行脫色，會取得比較滿意的效果。 方法：將染色的膠放在100毫升去離子水里，用擦拭紙包裹膠，再放進微波爐加熱幾分鐘后更換去離子水，并重復上述步驟3或4次。請注意防止盛放膠的容器溫度過高。
Q3.	此款產品能否用于免疫印跡？
A3.	可以，如果用EDTA清除膠里面含有的鋅，可以提高轉膜的效率。 方法：膠浸在含有10 mmol/L EDTA的轉移緩沖液（25 mmol/L tris、192   mmol/L甘氨酸，10％甲醇）里輕輕攪拌10分鐘。重復上述步驟3次。然后放進不含EDTA的轉移緩沖液（25 mmol/L tris、192   mmol/L的甘氨酸，10％甲醇）里攪拌10分鐘并轉移到PVDF膜或NC膜（硝酸纖維素膜）上。
Q4.	條帶扭曲了。
A4.	含有EDTA，無機鹽，表面活性劑等的樣品可能會導致條帶彎曲或者拖尾。通過TCA或透析沉淀脫鹽樣品。空白泳道也會導致相鄰樣品條帶彎曲，在空白泳道加與樣品相同體積的樣品緩沖液(x1)。
Q5.	磷酸化蛋白和非磷酸化蛋白不能分離。
A5.	將β–酪蛋白（038-23221）作為Phos-tag SDS-PAGE電泳的陽性對照，將用堿性磷酸酶處理的β–酪蛋白作為陰性對照，并檢查條帶的遷移。如果只有一個條帶，可能是由于Phos-tag™或丙烯酰胺的濃度沒有優化導致磷酸化和非磷酸化蛋白不能分離。
Q6.	可用在細胞的粗提物上嗎？
A6.	可以的，可能Rf值可能有稍低，由于目的蛋白的因素，條帶可能會比較模糊。
Q7.	上樣量多少？
A7.	1至5微克純化的蛋白（考馬斯亮藍染法），10至30微克的組織或細胞提取物（取決于蛋白質的表達量）。 *這是推薦的用量，可以先進行常規的SDS-PAGE和免疫印跡法，確定合適的上樣量。
Q8.	使用哪種蛋白marker？
A8.	不推薦使用蛋白marker。該款產品不需要蛋白marker。因此，建議用來源于大腸桿菌的重組蛋白或者是非磷酸化樣品作為陰性對照代替蛋白marker。
Q9.	此款產品的配離子是什么？
A9.	鋅離子
Q10.	我們怎么知道是因?yàn)榈鞍装l(fā)生磷酸化條帶才會發生遷移？
A10.	使用12.5% SuperSep™   Ace(Wako 目錄No. 199-14971)進行電泳（有相同的膠濃度），檢查目標蛋白質是否降解。
